Pilot Tri-proof Lighting

TP03

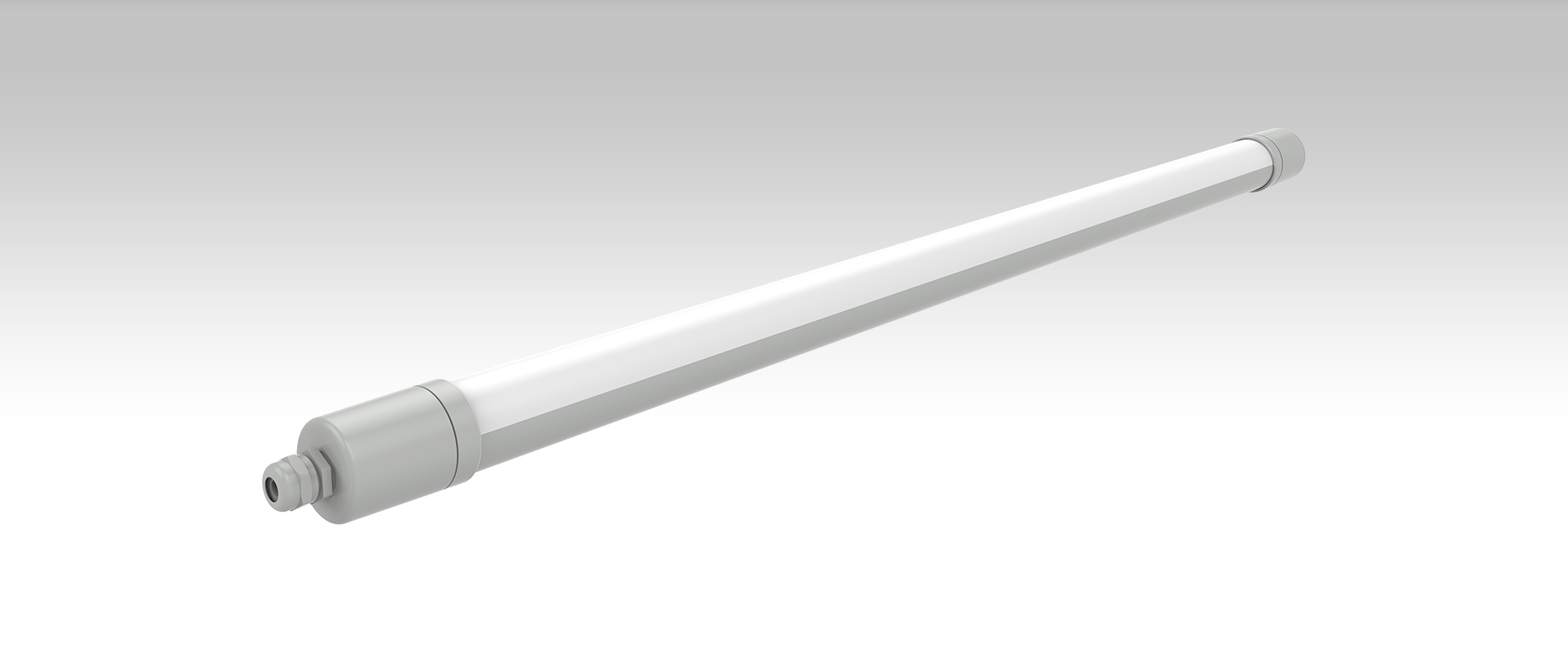

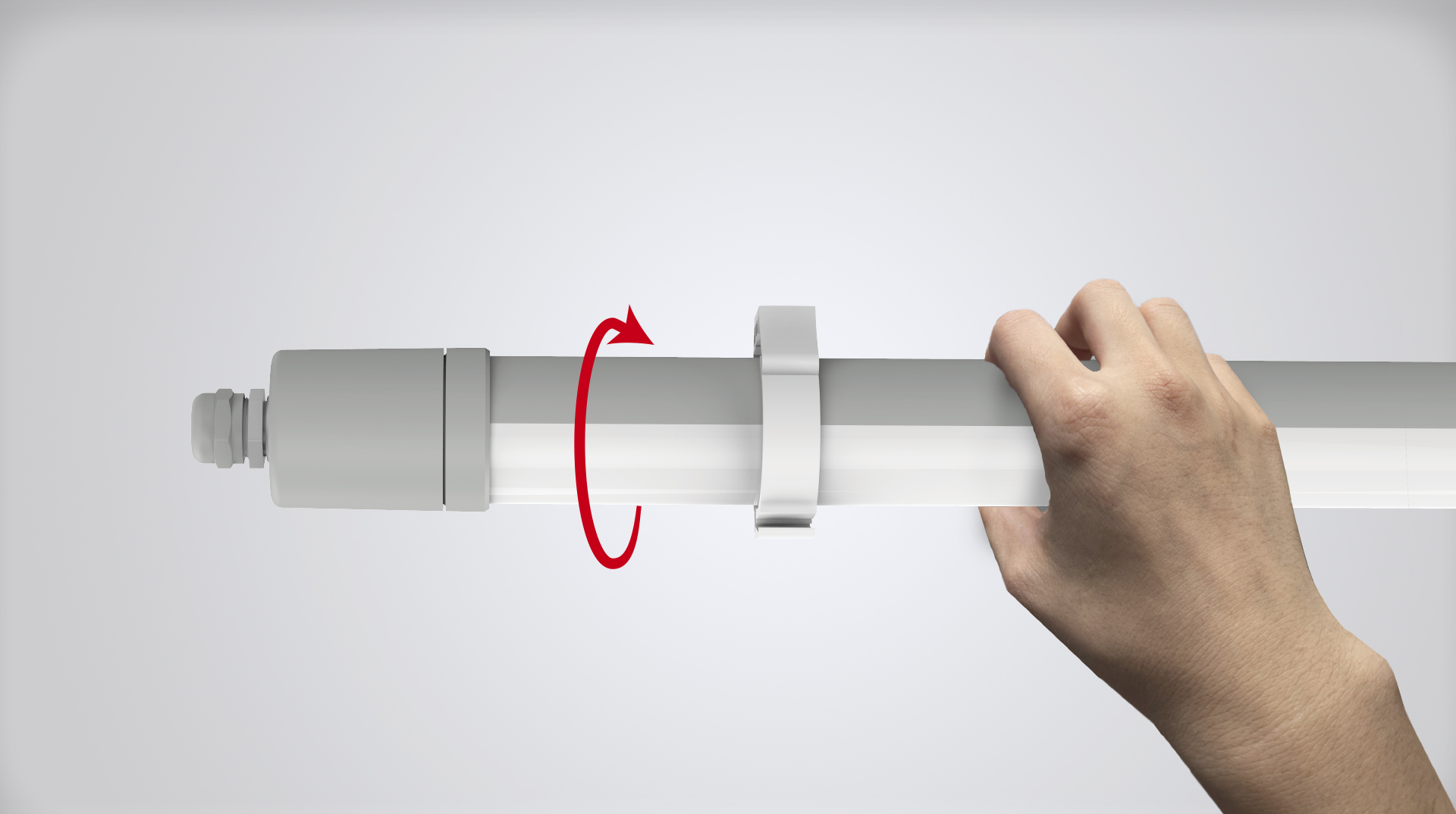

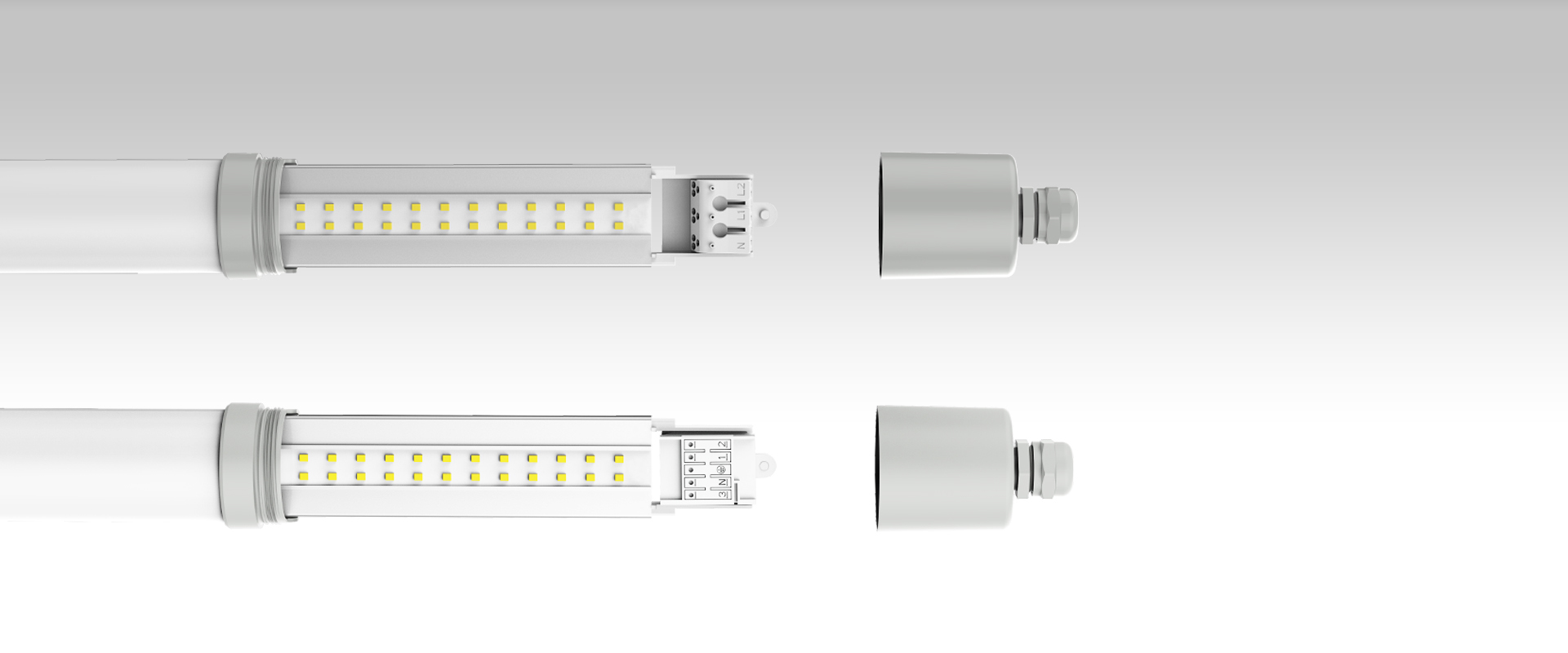

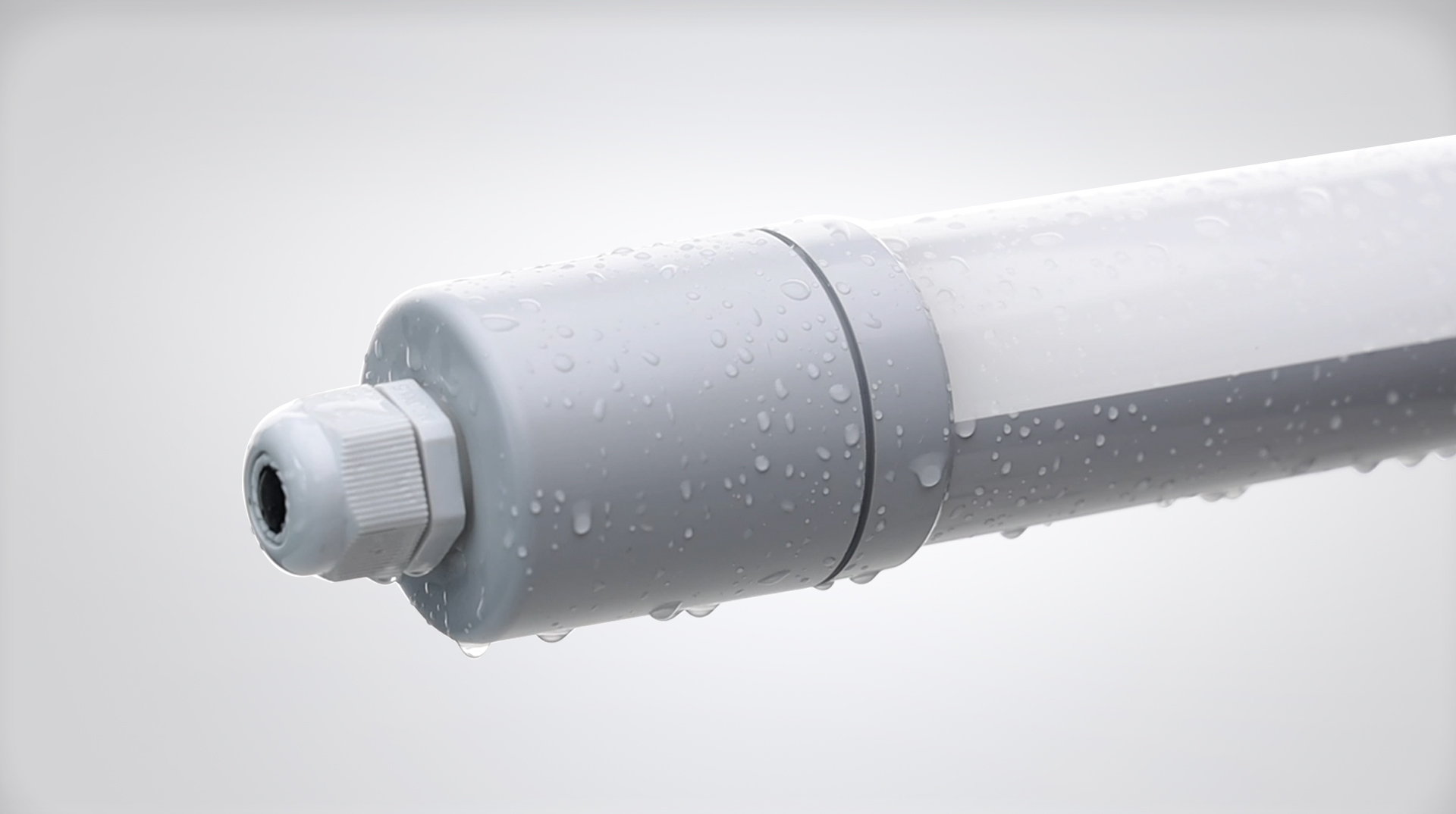

TP03 is smart tubular with 48mm diameter which is an optimal solution for areas with harsh environmental conditions and also normal environmental conditions. 3/5 wires through is the best choice to be on/off or DALI function, at the same time, toolless smart end cap makes the installation become pretty simple and efficient.



TP03 认证.png


SizeWattageLumenEfficiencyCRICCTSDCMWaterproofIK Rate
600mm15/20W2400/3200LM160lm/w804000K3IP65IK08
1200mm22/30W3520/4800LM160lm/w804000K3IP65IK08
1500mm30/40W4480/6400LM160lm/w804000K3IP65IK08



Name

Description

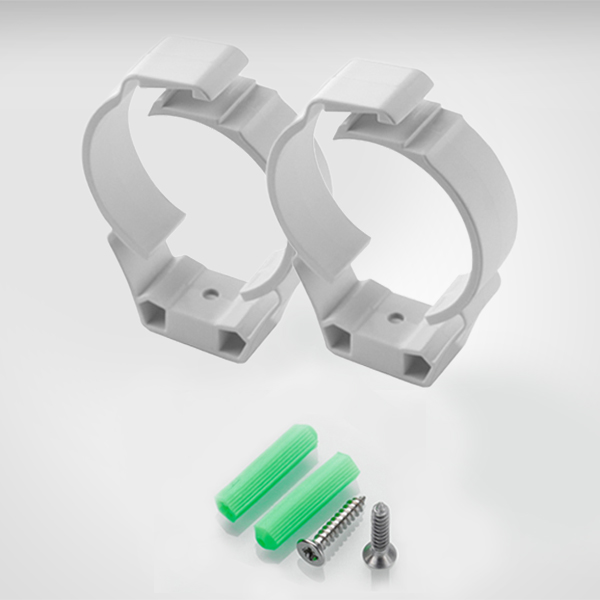

Plastic Bracket

Plastic Bracket

Bracket for ceiling mounted and suspension

Half Opening Bracket

Half Opening Bracket

Bracket for ceiling mounted and suspension

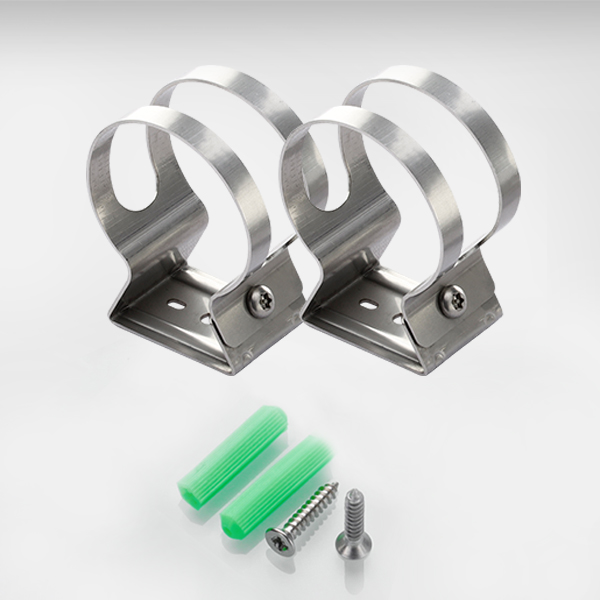

Anti-theft Bracket

Anti-theft Bracket

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted

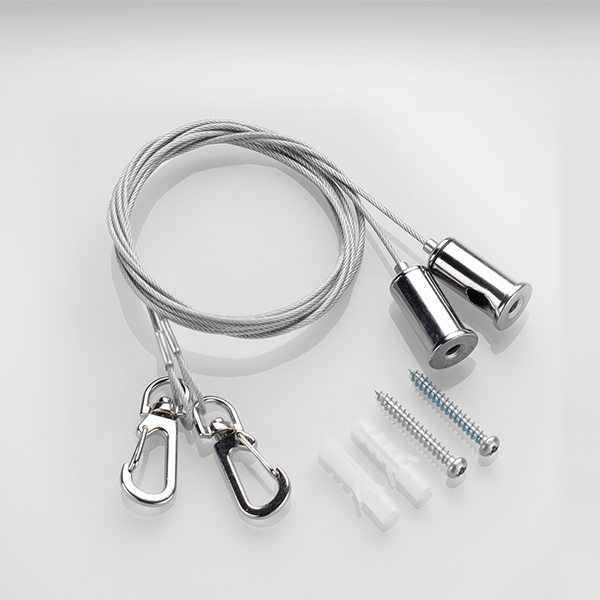

Suspension Kit

Suspension Kit

Stainless steel material; Used for the absorption of suspending

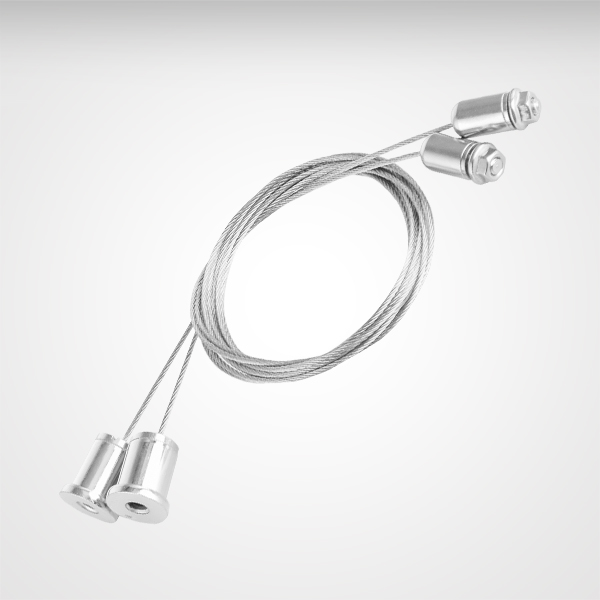

Suspension Kit For Triangle Hook

Suspension Kit For Triangle Hook

Stainless steel material; Used for the absorption of suspending

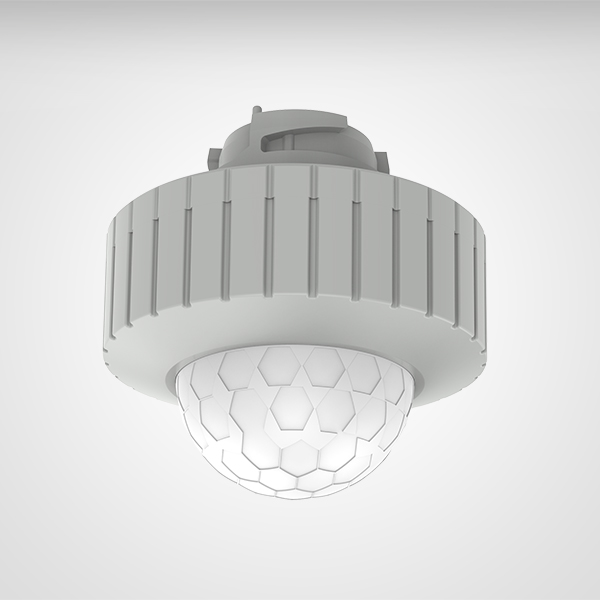

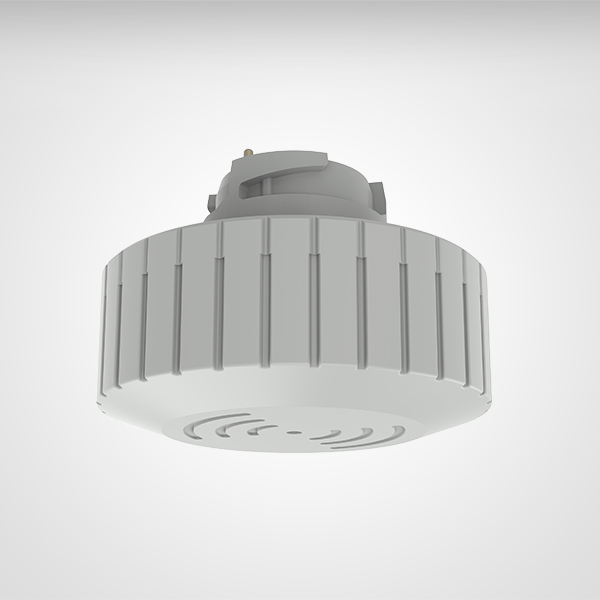

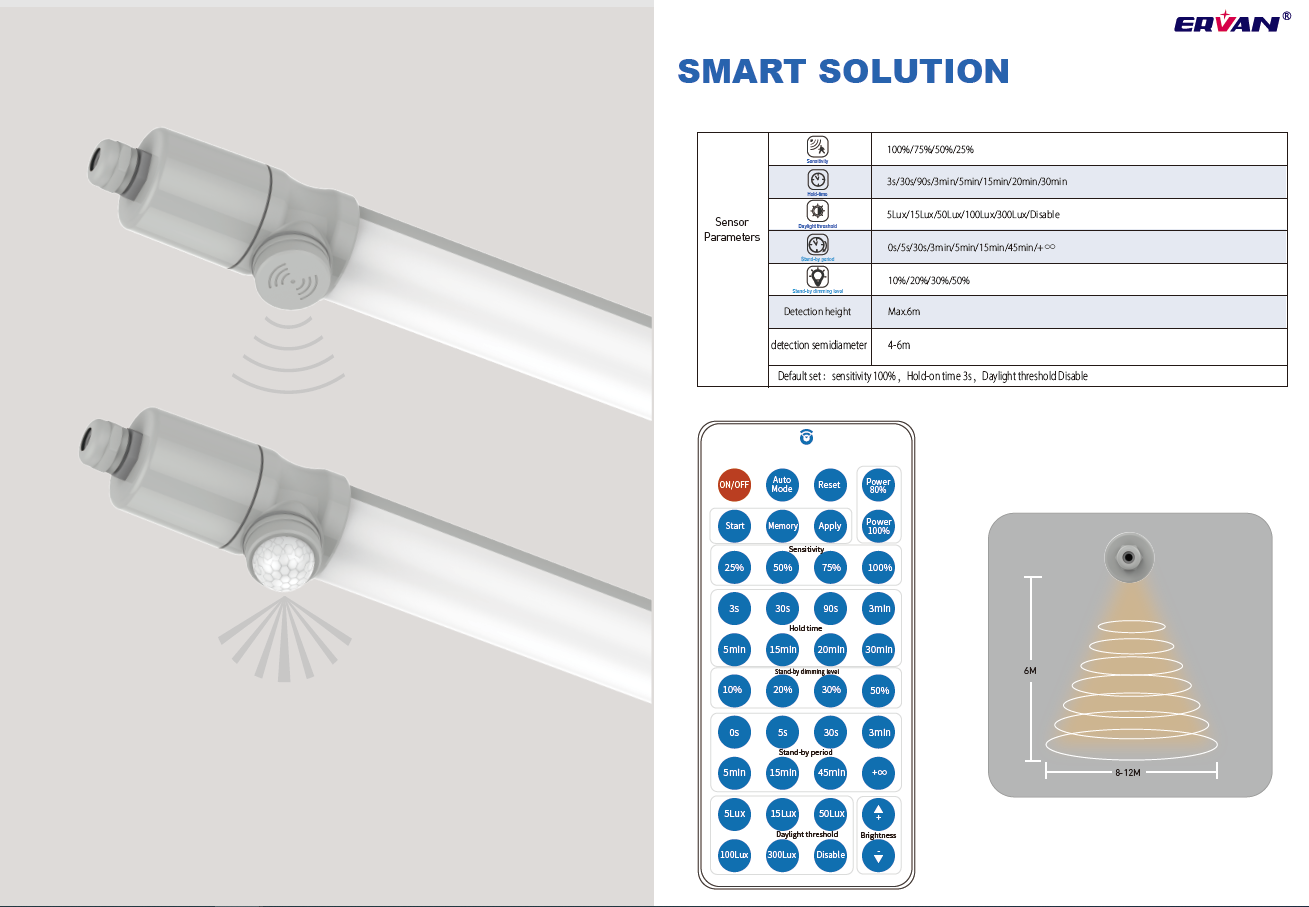

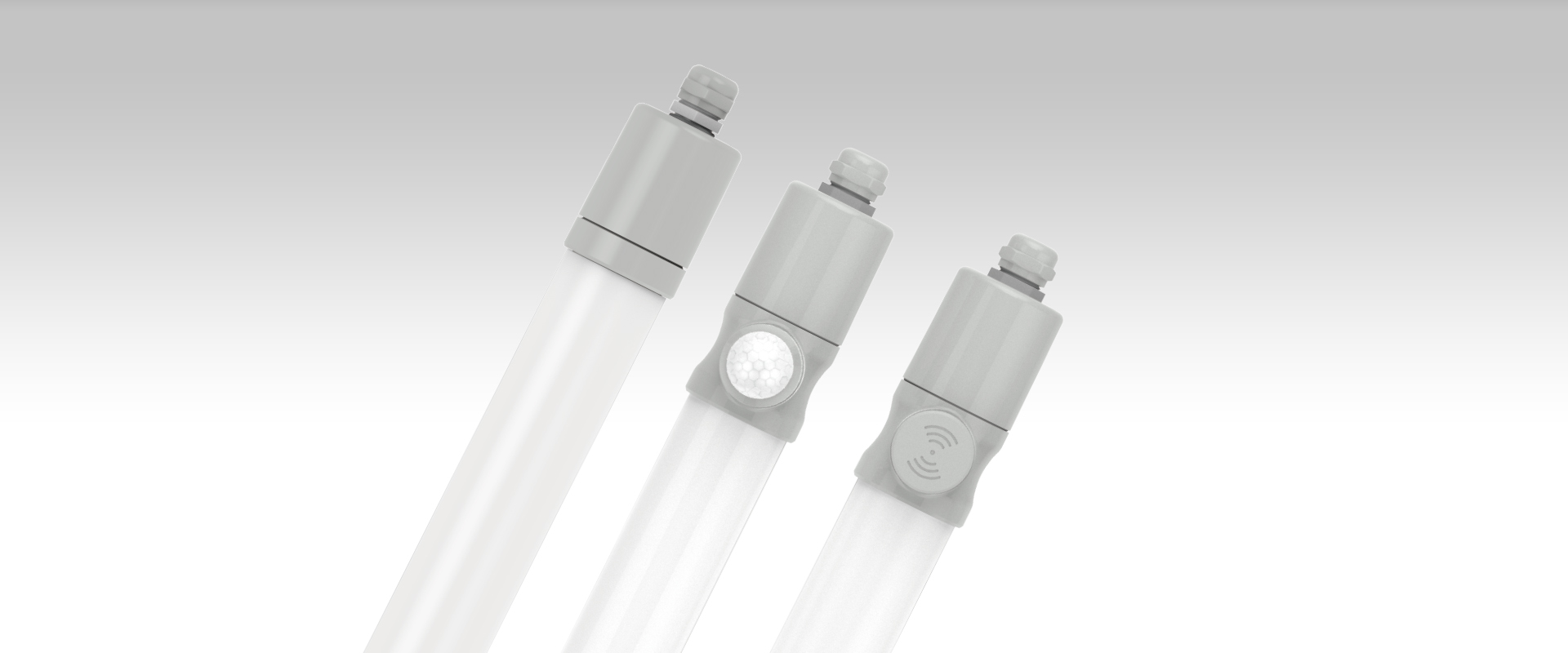

Microwave Sensor

Microwave Sensor

Smart solution microwave

PIR Sensor

PIR Sensor

Smart solution PIR

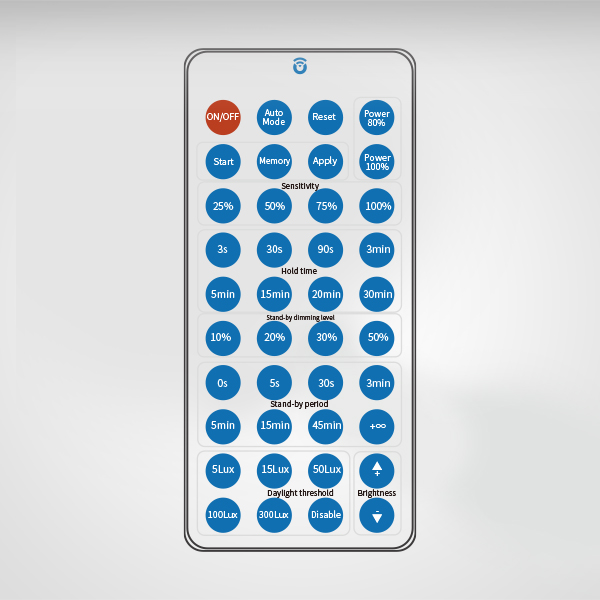

Remote Control

Remote Control

Remote control for microwave & PIR sensor


Structure Data

Input: AC220~240V 50/60Hz

Wiring: 3/5 wires through available

Operation Temp: -20~40°C

Function: 1~10V DIM | DALI

Material: PC

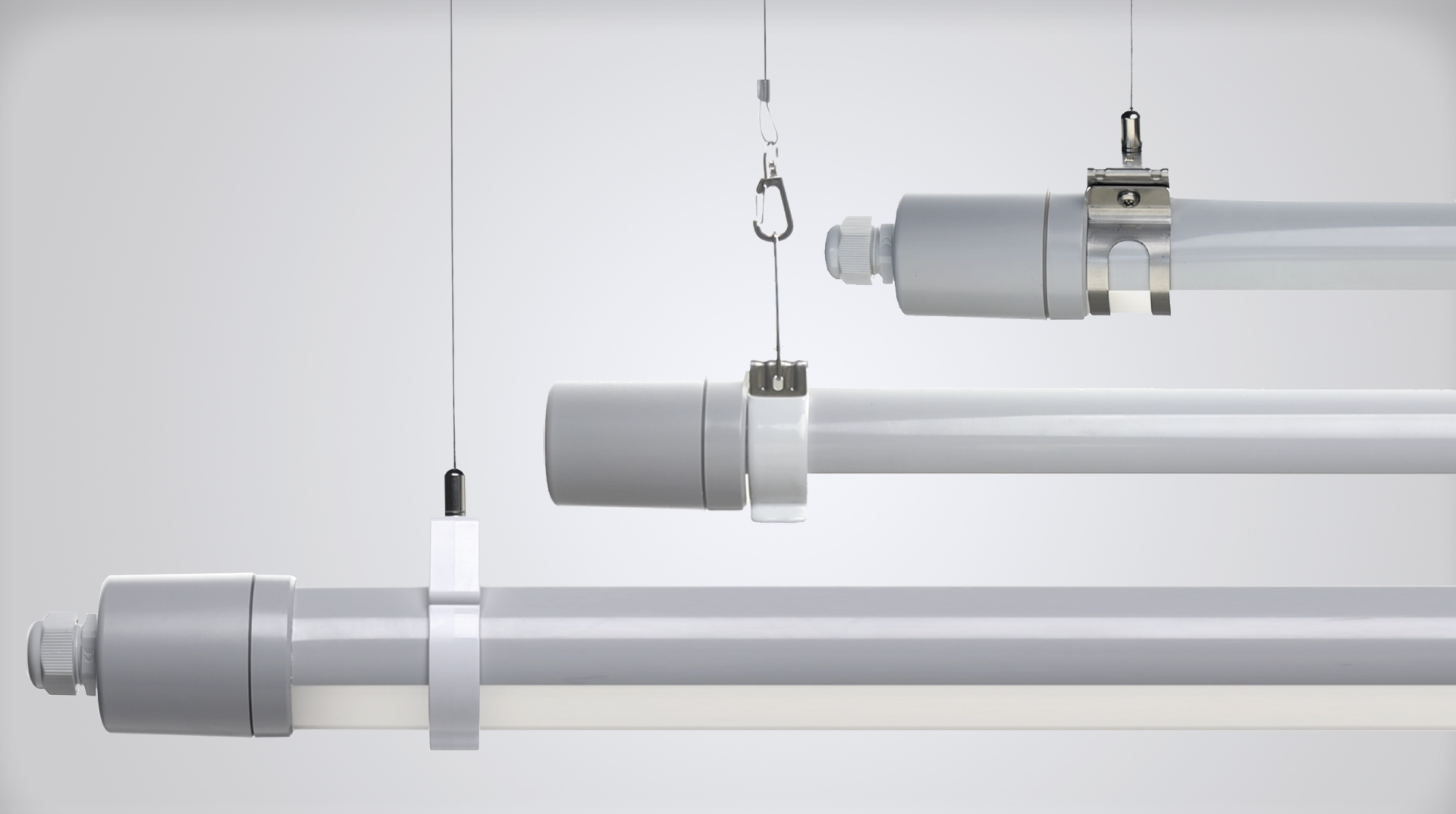

Installation: Ceiling mounted | Suspension

Protection: IP65 | IK08

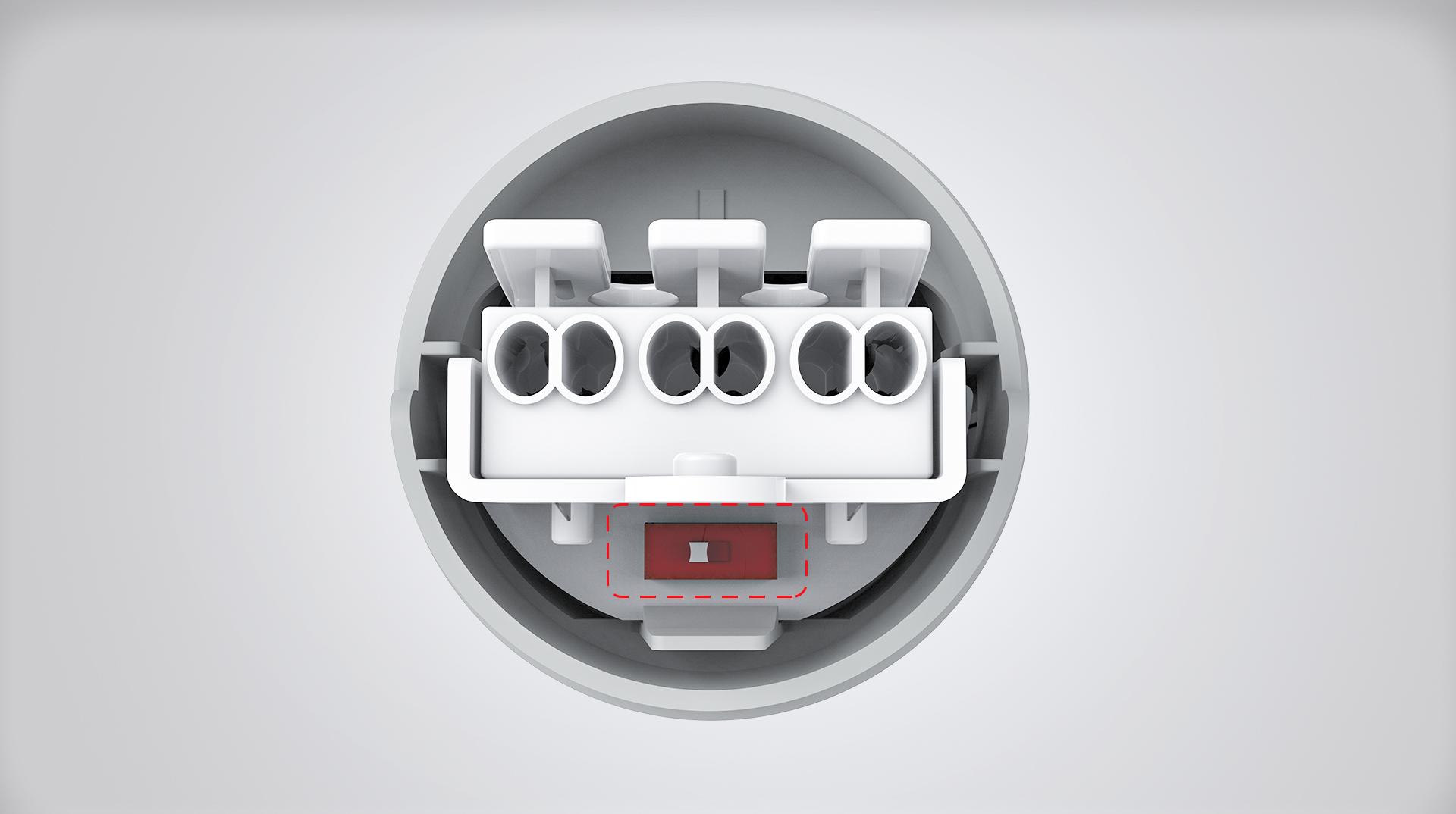

Terminal: 3/5x1.5mm² | 3/5x2.5mm² push-in terminal



Download
IES Files

TP03 IES.zip

Download
Integrating Sphere

TP03 Integrating Sphere.zip

Download
Specification

SPEC-TP03 V4.pdf

Download
Manual

Manual-TP03 V3.pdf

Download
