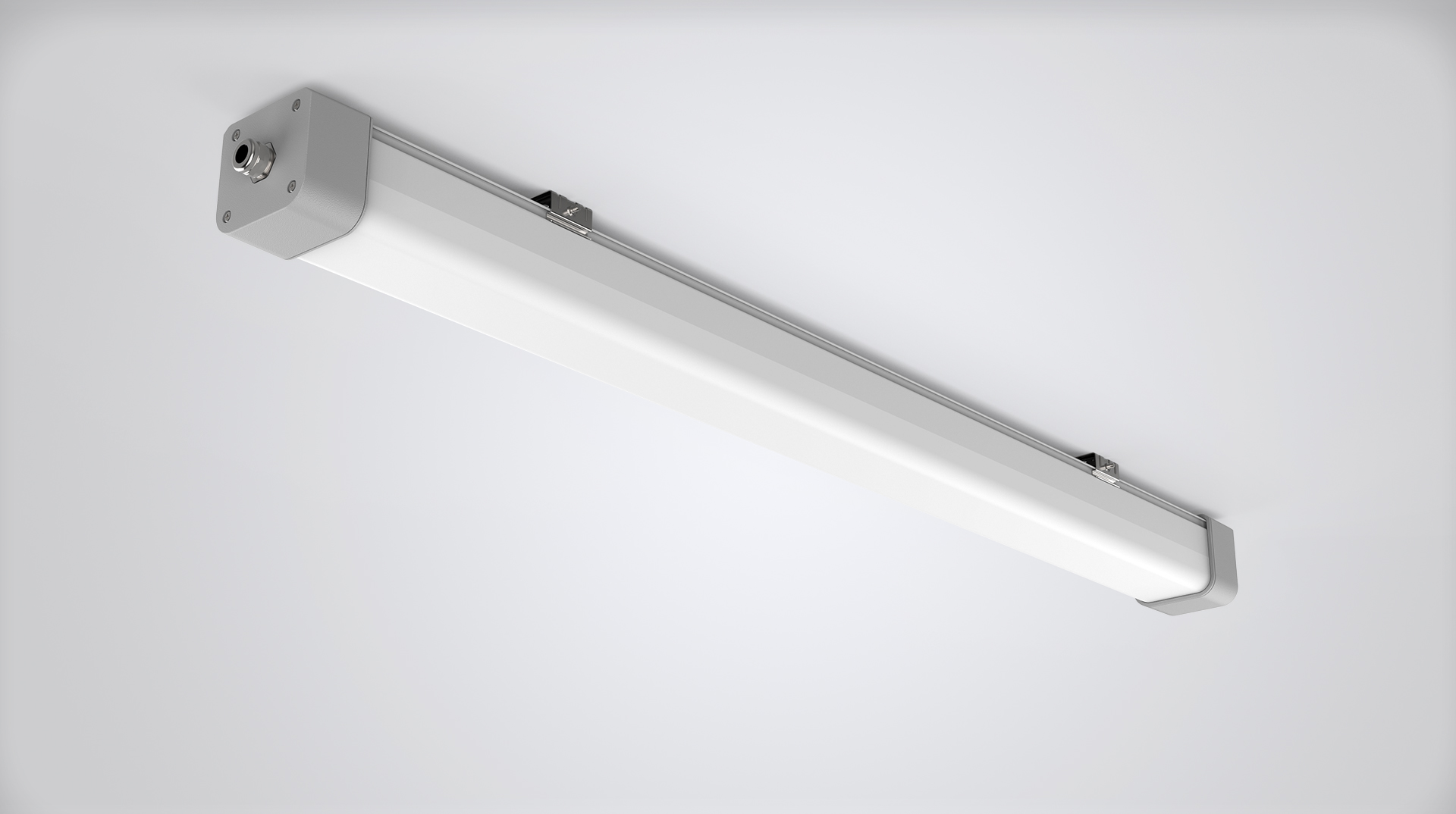

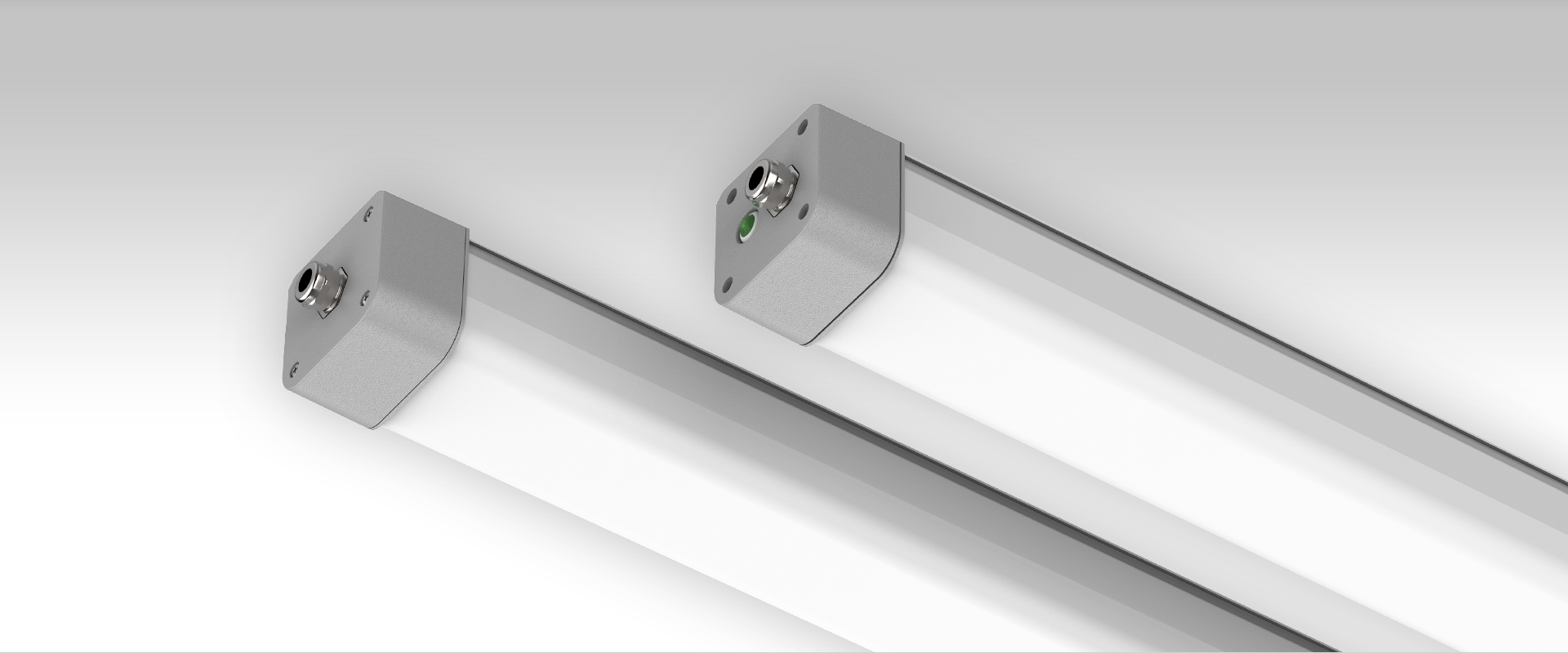

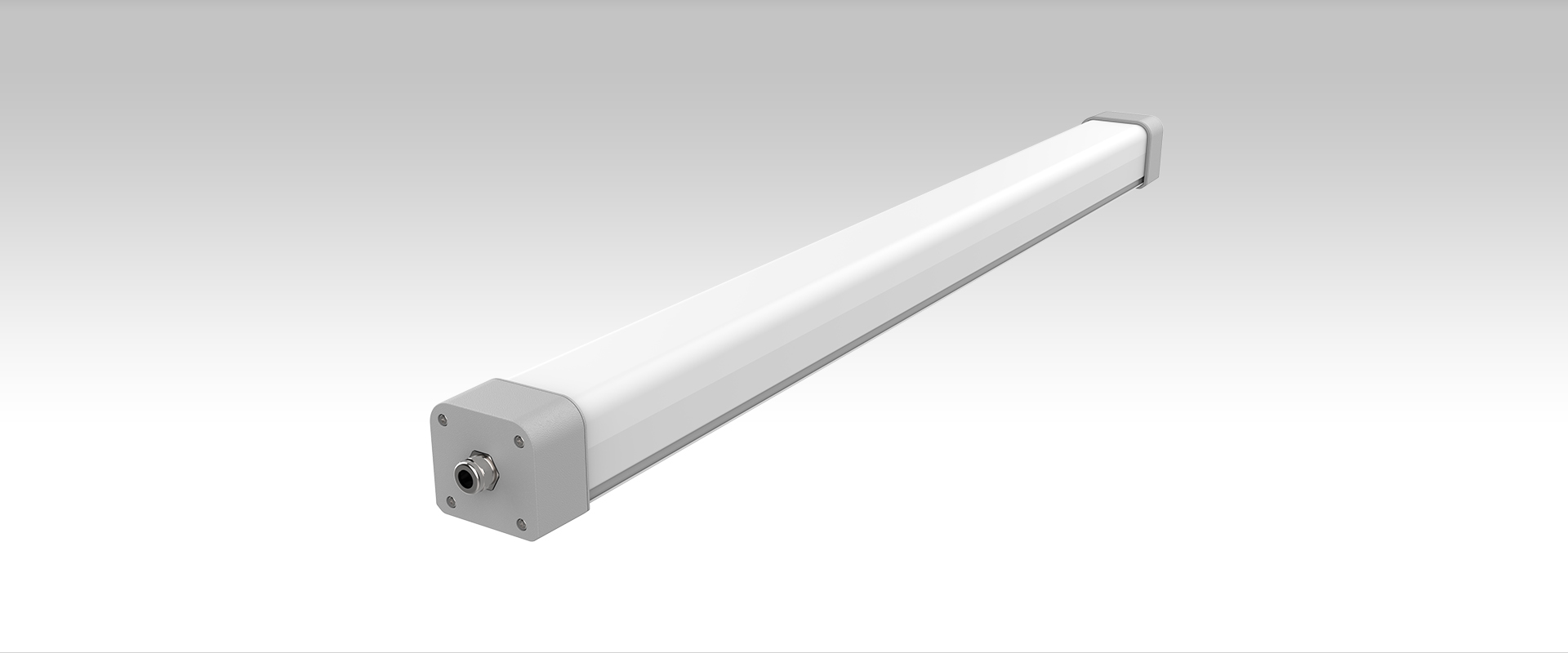

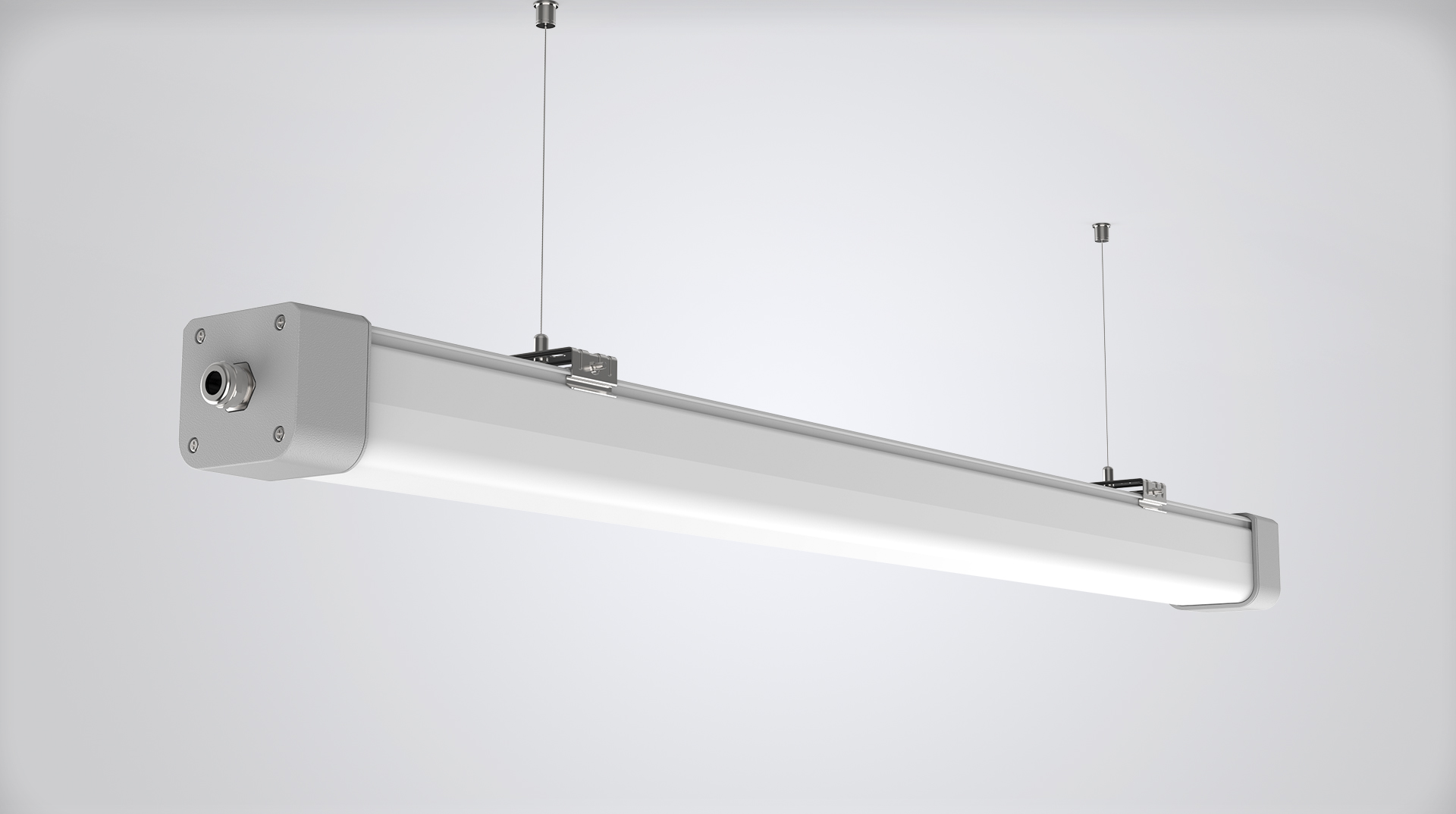

Hulk Tri-proof Lighting

TH37

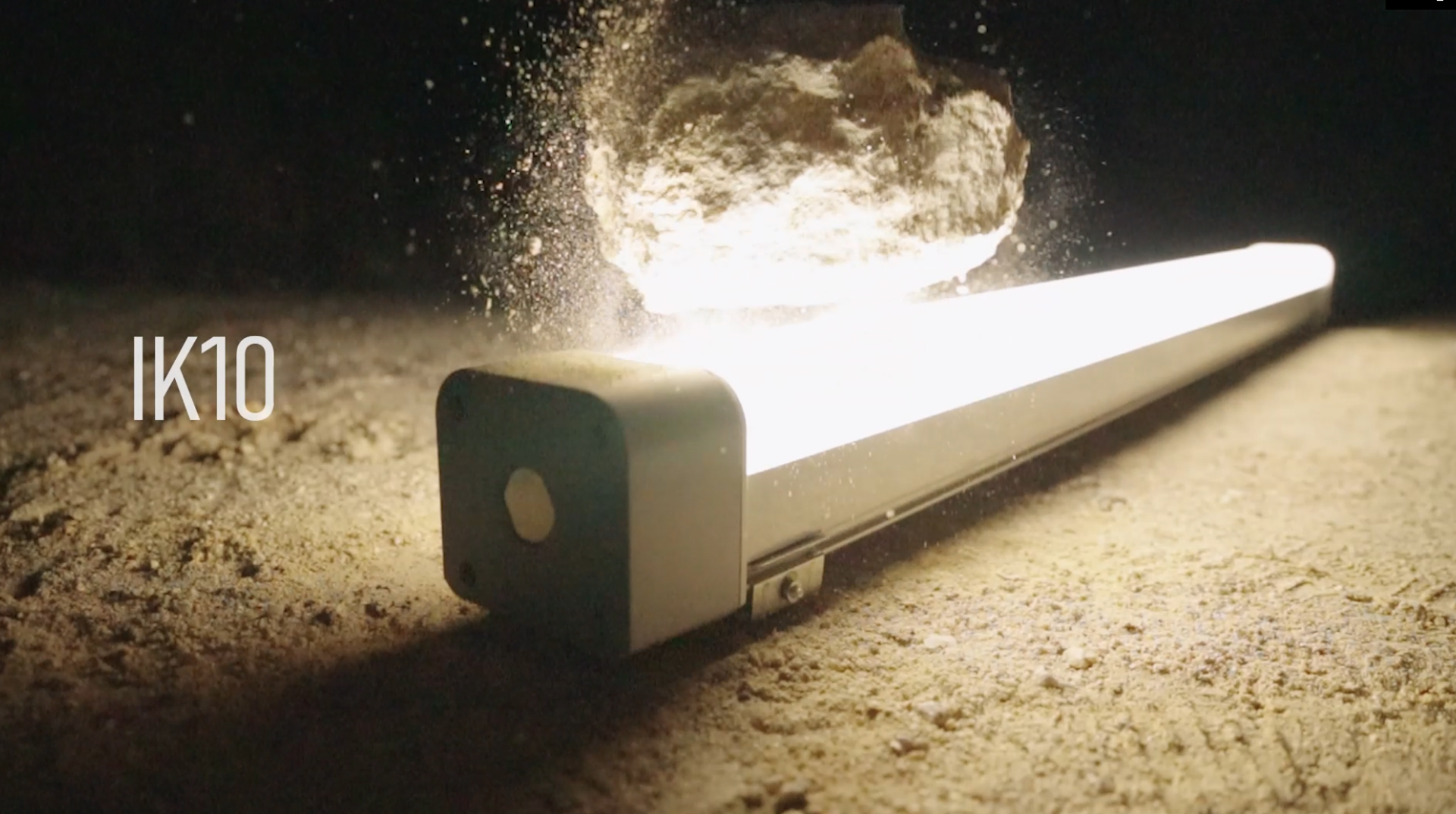

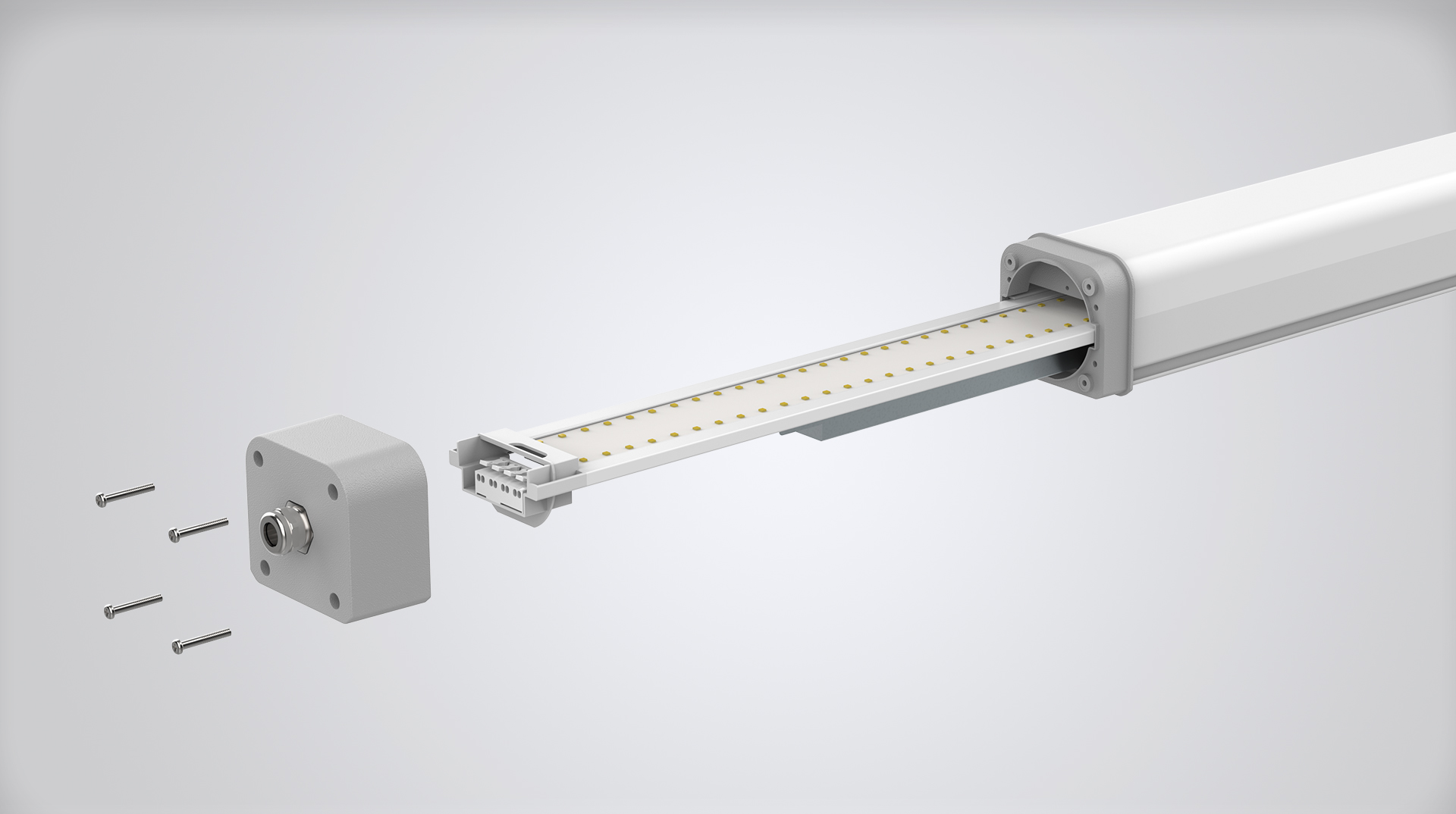

Hulk version tri-proof lighting TH37 is a very strong product with Aluminium end cap so that suitable for anti-corrossive application and also with strong impact-proof IK10. Integrated whole PC cover makes better water-proof function IP66. Integrated emergency function available for 3hrs back up illumination, modular design according to newest ecodesign regulation for easy maintenance and recycle economy. Application for heavy industry, warehouse, tunnels, factory and so on.





Size

Wattage

(Power adjustable)

LumenEfficiencyCRICCTSDCMWaterproofIK Rate
1200mm28-34-40-45W4480-5440-6400-7200LM160lm/w804000K3IP66IK10
1500mm37-45-53-63W5920-7200-8480-10080LM160lm/w804000K3IP66IK10




Name

Description

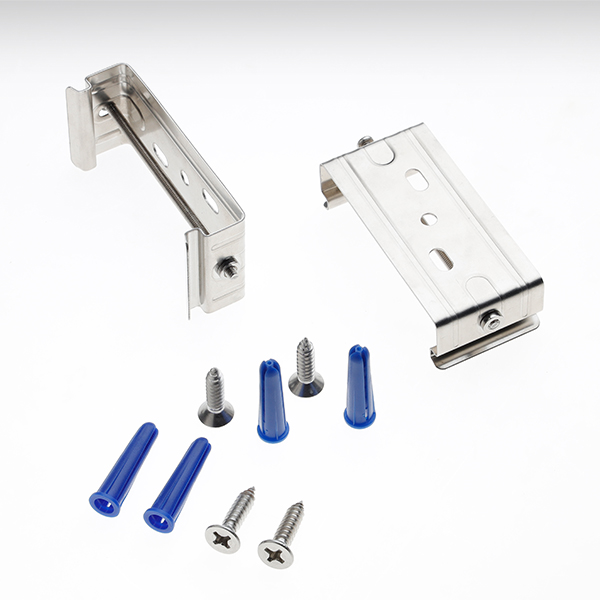

Surface mounting kits

Surface mounting kits

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted

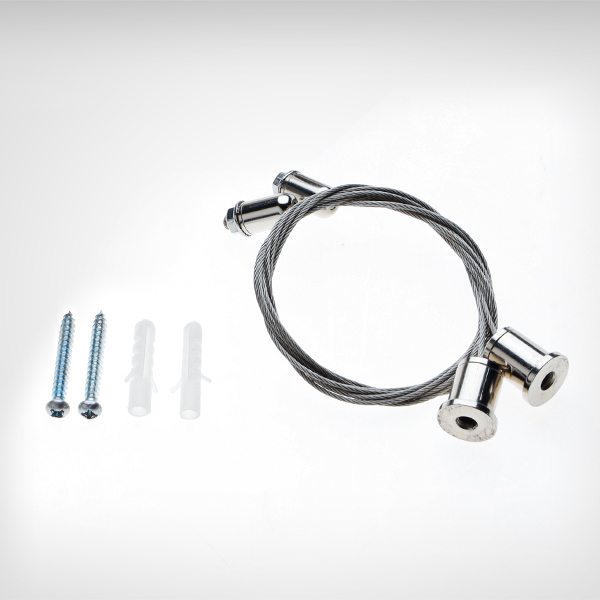

Suspension kits

Suspension kits

Stainless steel material; Used for the absorption of suspending

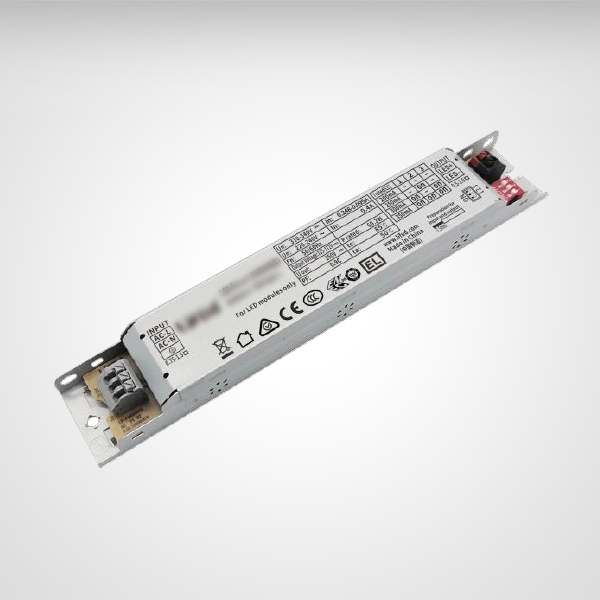

LED driver

LED driver

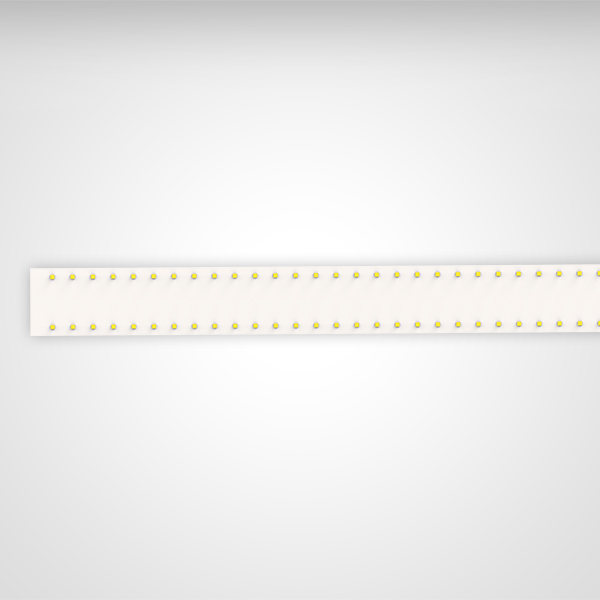

LED PCB board

LED PCB board

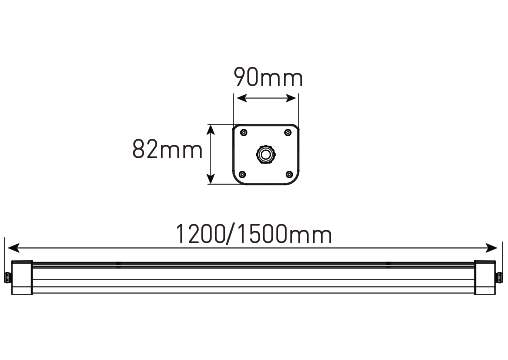

Structure Data

Input: AC220~240V 50/60Hz
Wiring: 3/5 wires through available
Operation Temp: -20~40°C
Function: 1~10V DIM | DALI | SENSOR | Emergency
Flicker: Flicker free
Material: PC+Aluminum
Installation: Ceiling mounted | Suspension
Protection: IP66 | IK10
Terminal: 5x1.5mm²/5x2.5mm² push



Media
Download
Specification

SPEC-TH37 V1.pdf

Download
Manual

Manual-TH37 V1.pdf

Download
