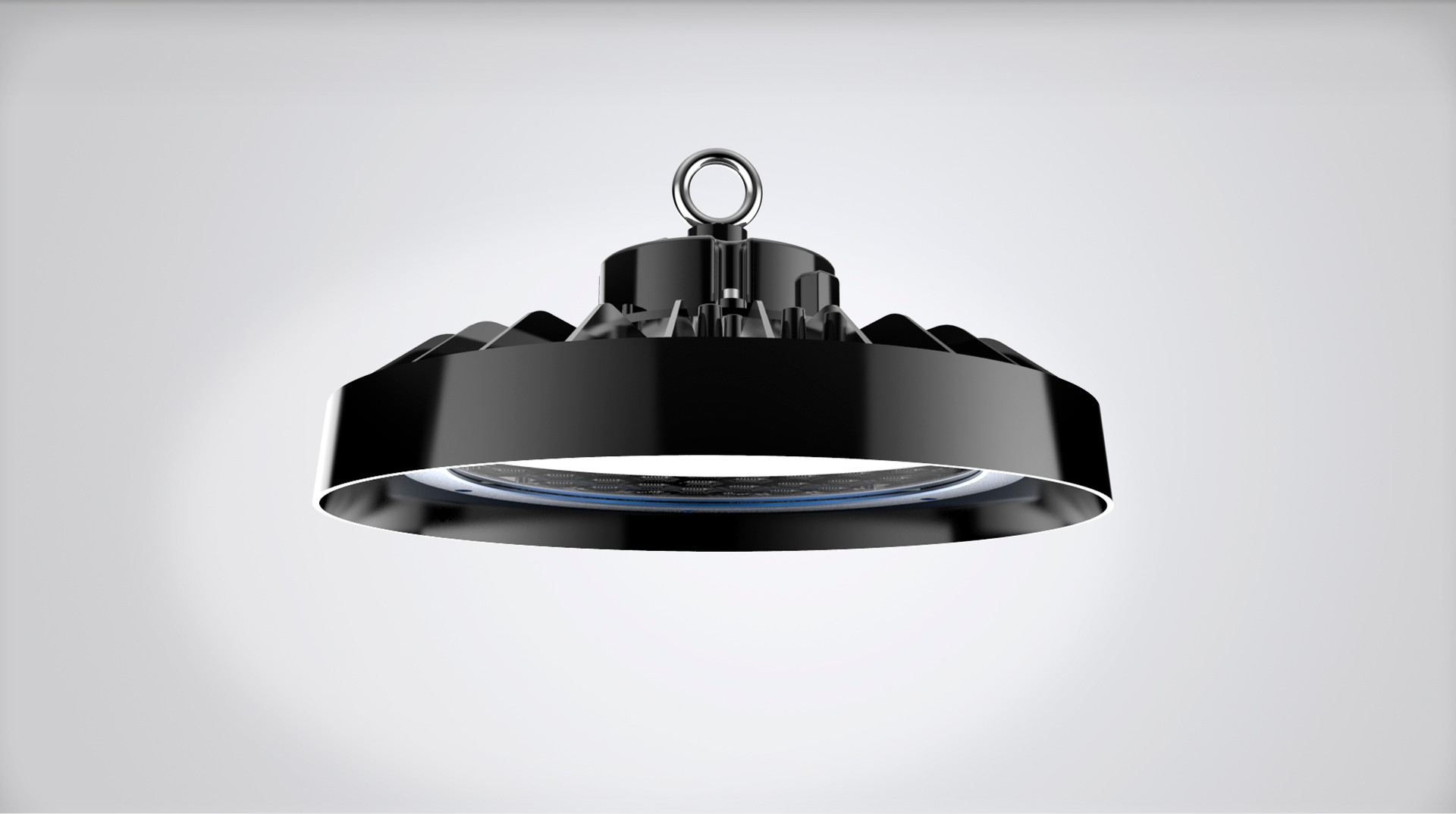

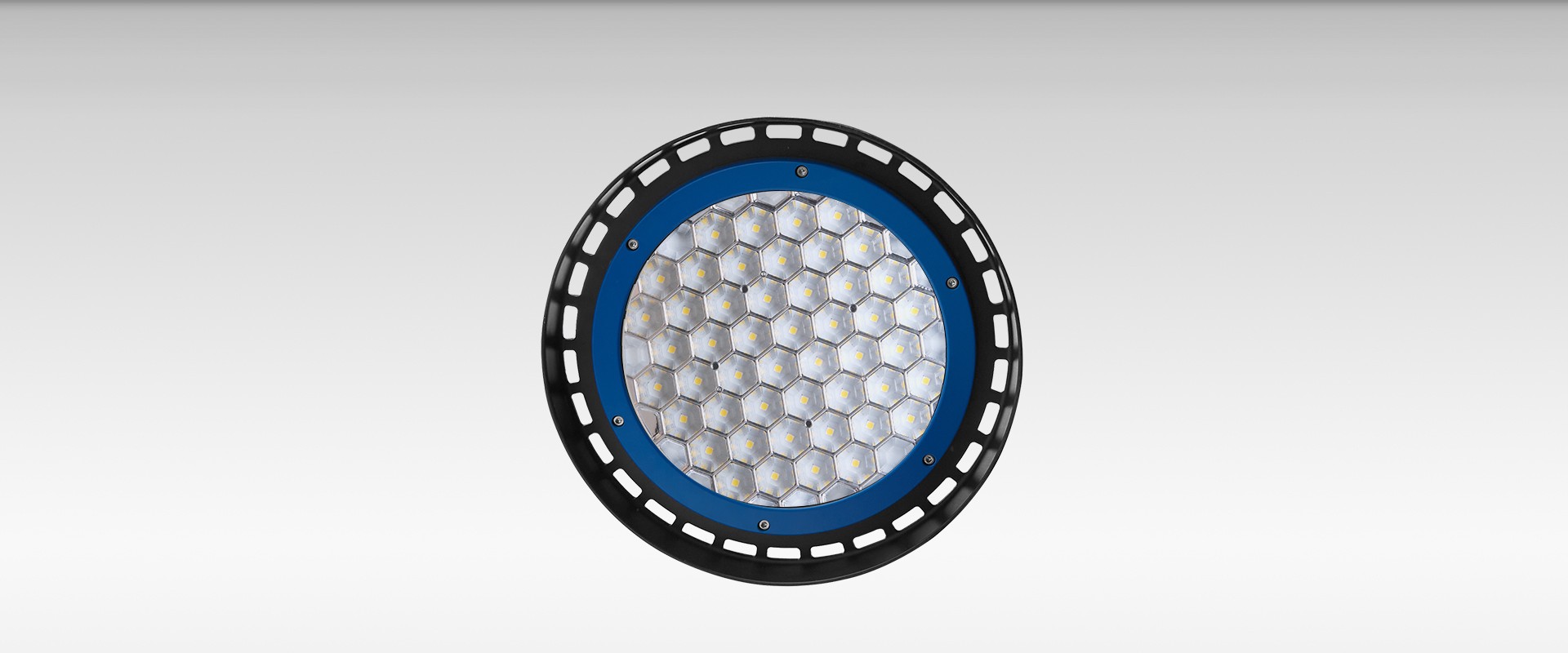

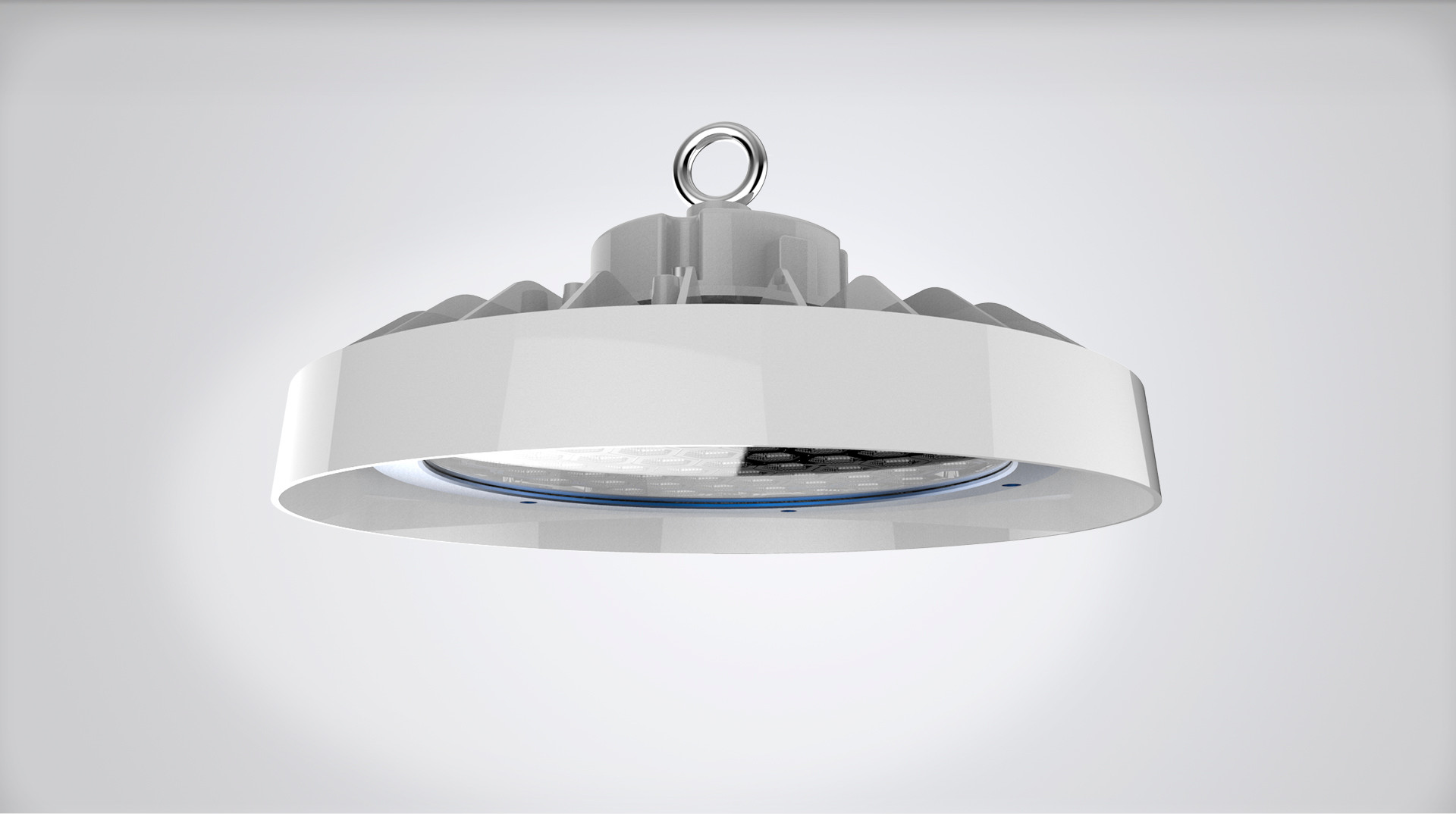

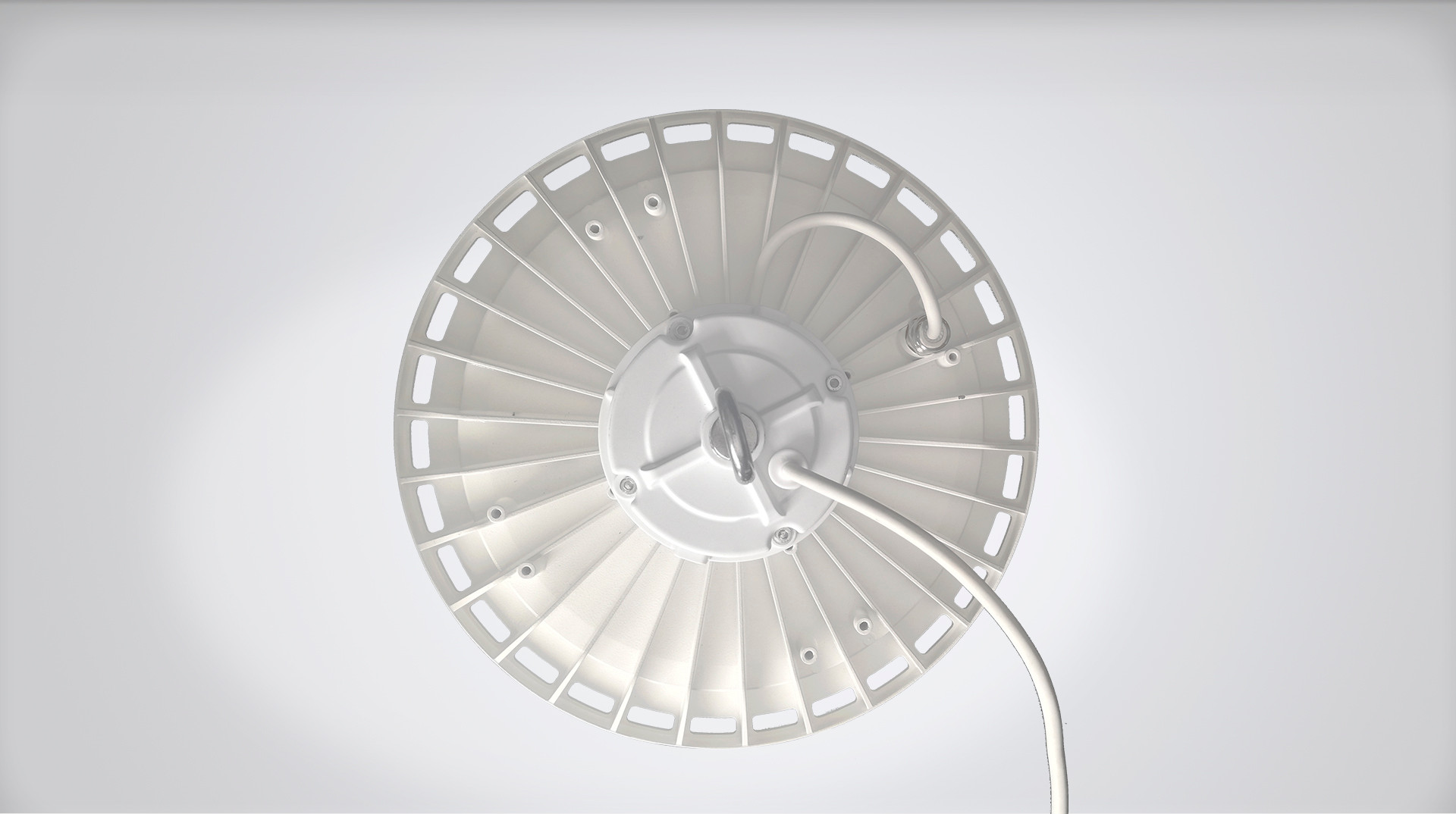

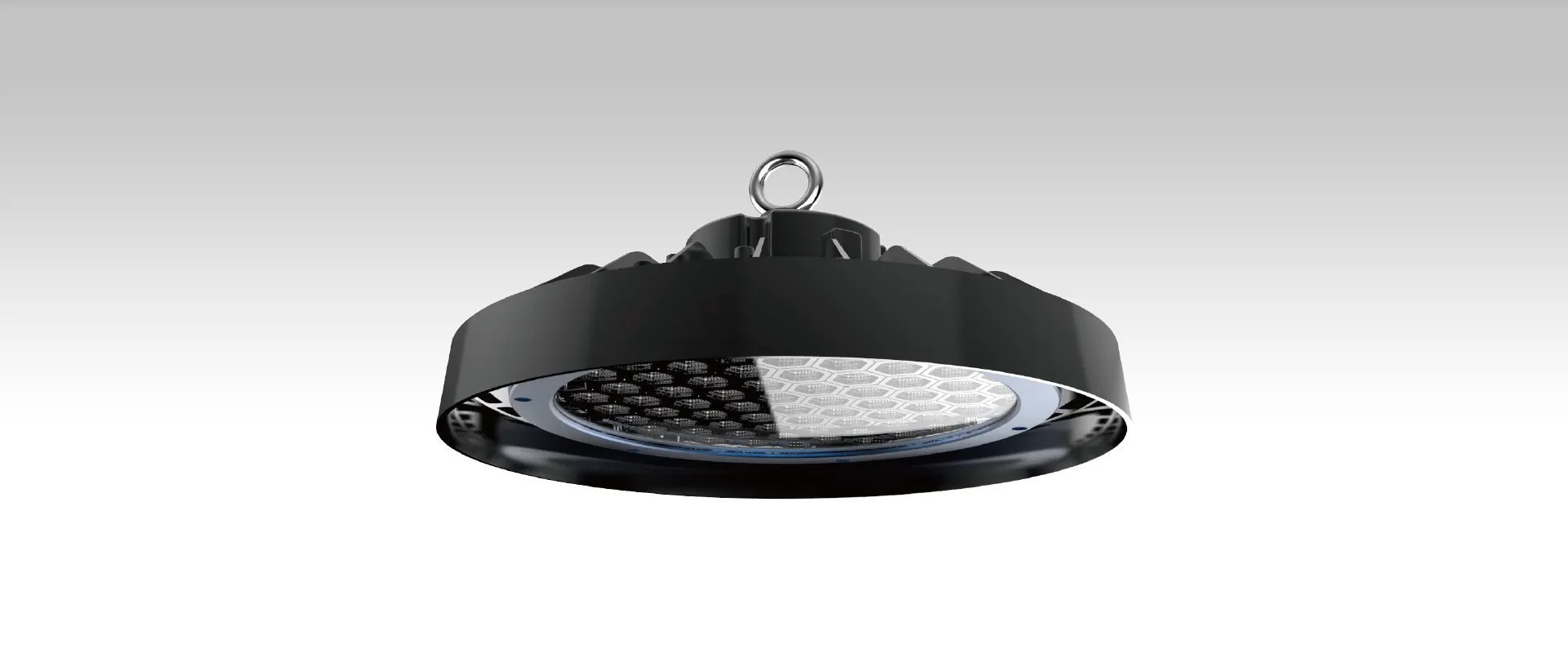

LOW GLARE HIGH BAY
H29
Global Patent (No 004670651-0001)
Comfortable visual for industry working place (Warehouse, Production Hall ect) is more and more important in the Europe Country. According to EN12464-1, high glare lighting makes workers’ eyes more faster fatigue. It causes to unsafe operation and low efficiency. ERVAN honeycomb low glare Highbay is the ideal solution for those Industry area which requested UGR<22. The low glare lighting offers more comfortable visual working environment for the workers which leads to more safe operation and high efficiency.

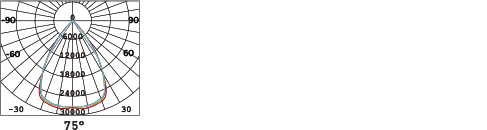

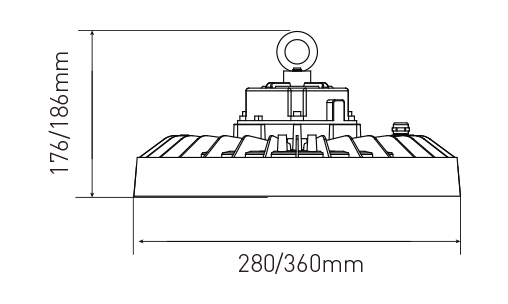

| Size | Wattage | Lumen | Efficiency | Beam Angle | CRI | CCT | SDCM | UGR |
|---|---|---|---|---|---|---|---|---|
| Ø280mm | 100W | 14000LM | 140lm/w | 75° | 80 | 4000K | 3 | 22 |
| Ø280mm | 150W | 21000LM | 140lm/w | 75° | 80 | 4000K | 3 | 22 |
| Ø360mm | 200W | 28000LM | 140lm/w | 75° | 80 | 4000K | 3 | 22 |

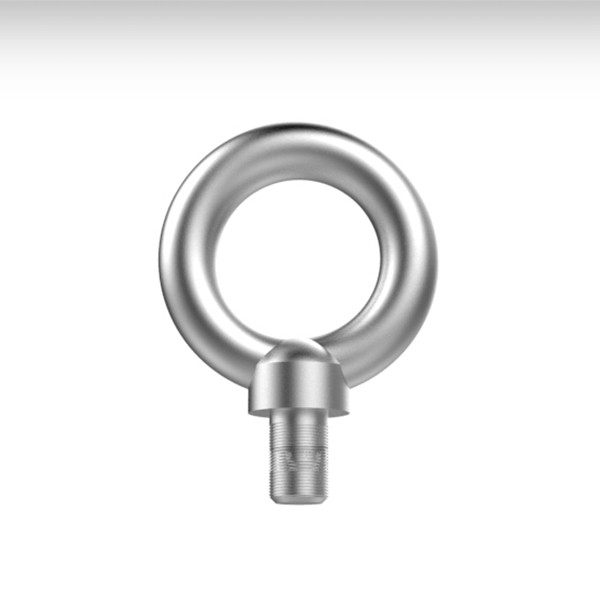

Loop hook
Stainless steel material; Used for suspending; 1pc/set

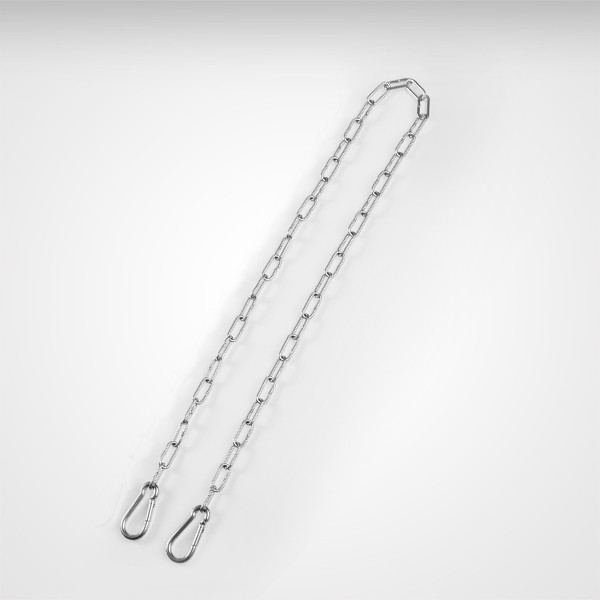

Suspension chain
Stainless steel material; Used for suspending; 1pc/set

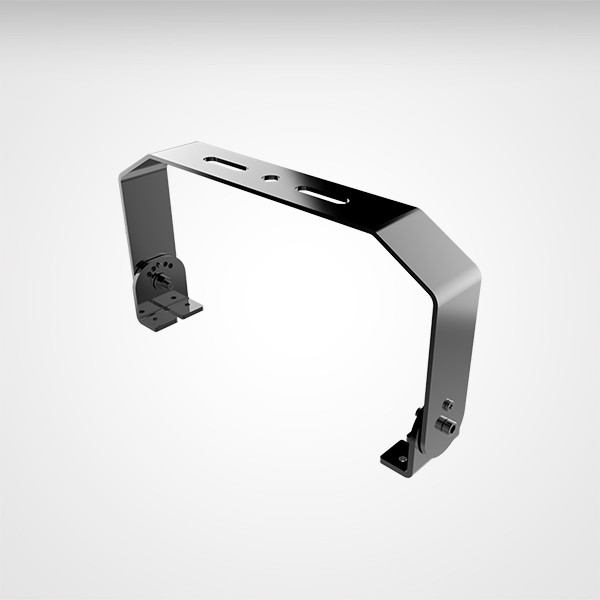

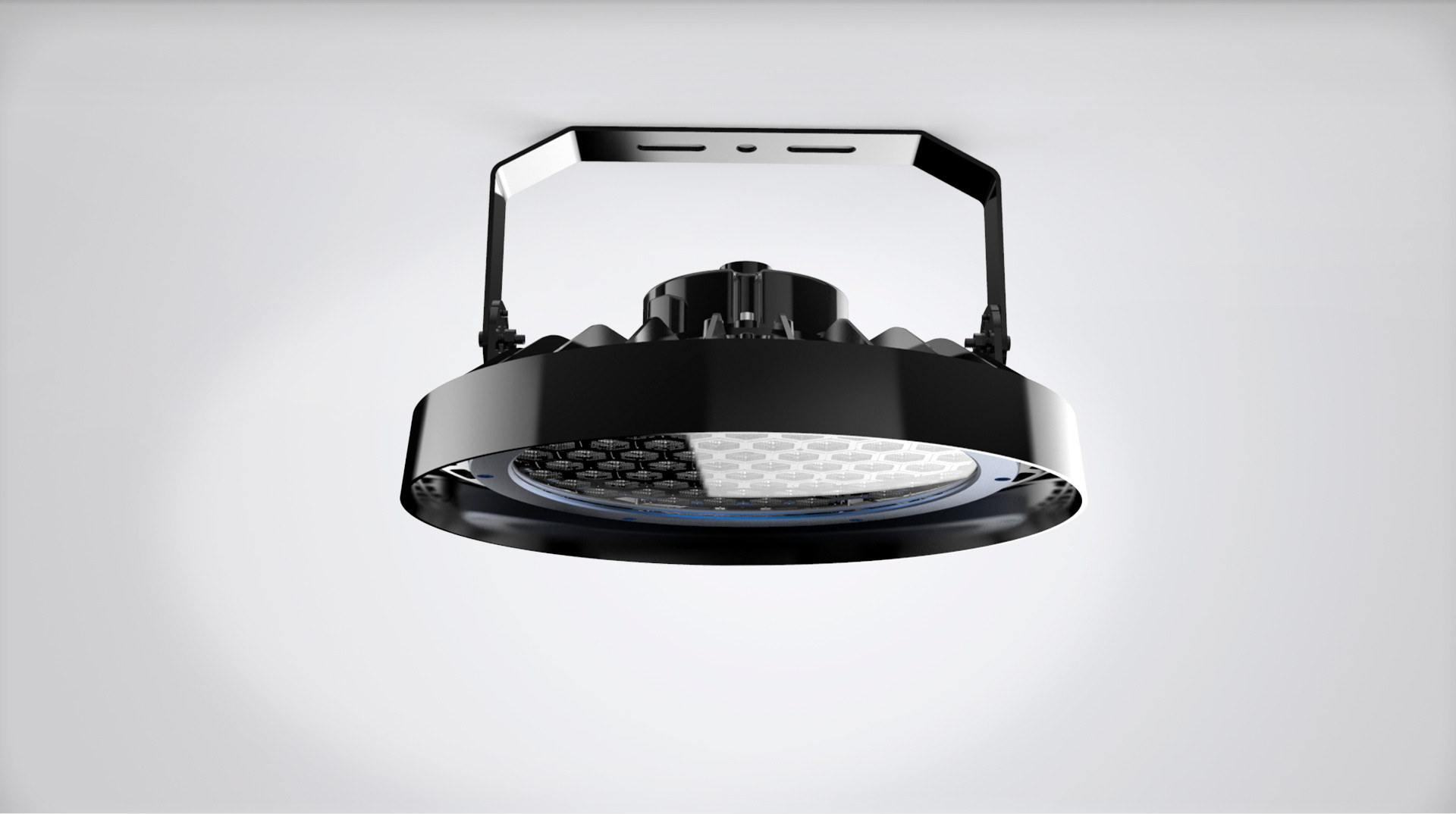

Surface mounting bracket
Steel material; Used for ceiling mounted; 1pc/set

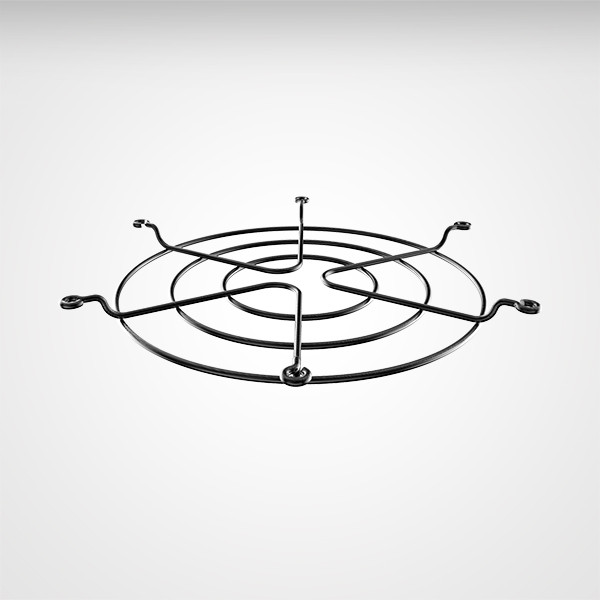

Steel grid
Steel material; Used for sports hall protection; 1pc/set
Input: AC100~240V 50/60Hz
Operation Temp: -30~50°C
Function: 1~10V DIM | DALI | SENSOR | Emergency
Flicker: Flicker free
Material: Aluminum

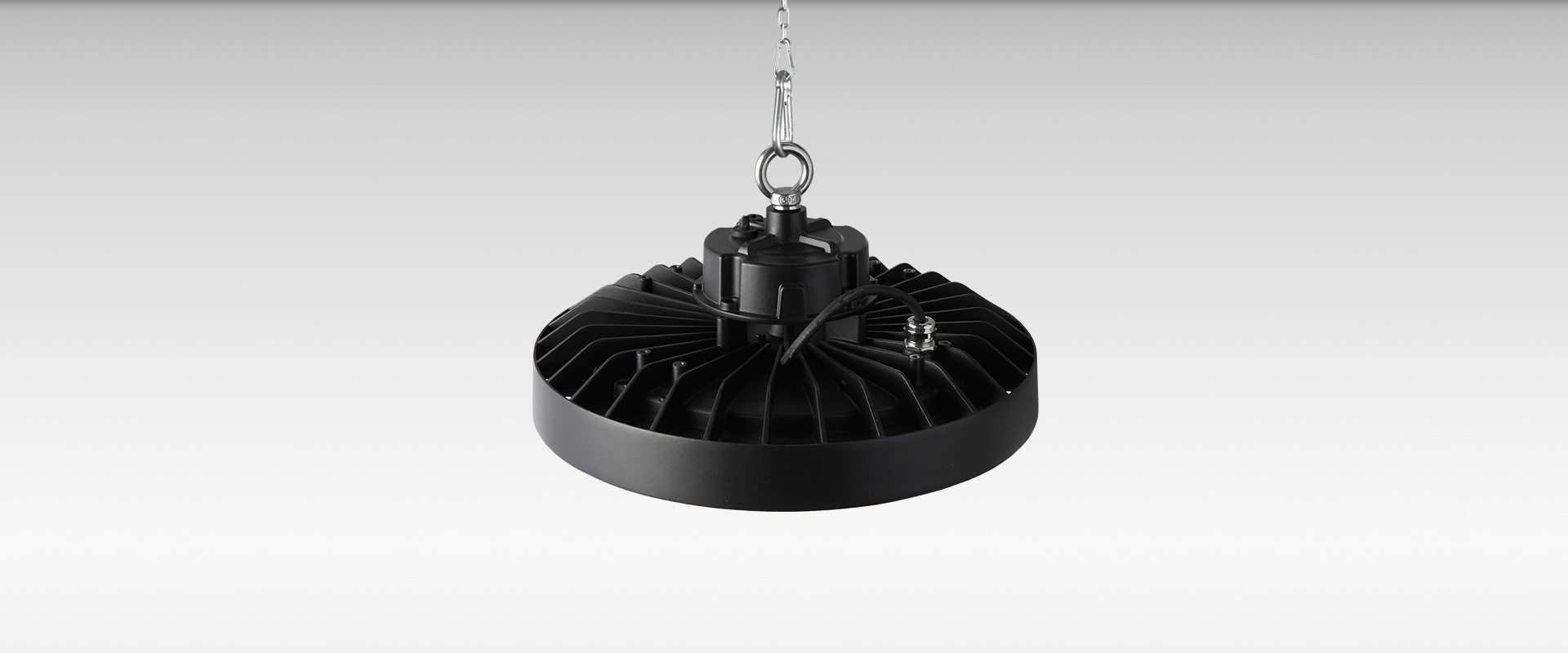

Installation: Ceiling mounted | Suspension
Protection: IP65 | IK08
