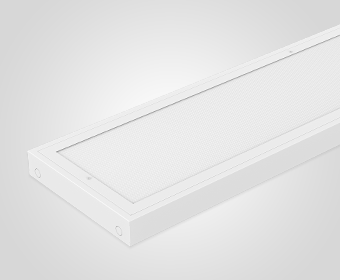

V12
V12 indoor sports hall luminaire is totally modern design with perfect slim structure, which is more competitive on weight, installation and power comsuption and with same low glare optic and ball proof certification which is welcomed for all the new indoor sports hall building.
| Size | Wattage | Lumen | Efficiency | Beam Angle | CRI | CCT | SDCM | UGR |
|---|---|---|---|---|---|---|---|---|
| 1530x148x65mm | 60W | 9000LM | 150lm/w | 80° | 80 | 4000K | 3 | <20.8 |
| 1530x148x65mm | 80W | 12000LM | 150lm/w | 80° | 80 | 4000K | 3 | <21.8 |
| 1530x274x71mm | 100W | 15000LM | 150lm/w | 80° | 80 | 4000K | 3 | <20.3 |
| 1530x274x71mm | 150W | 22500LM | 150lm/w | 80° | 80 | 4000K | 3 | <21.7 |
Surface mounting Screws
Stainless steel material; Used for the absorption of ceiling Mounted
Suspension Kits
Used for suspension
Angle-adjustable bracket
Used for ceiling mounted with angle-adjustable
Input: AC220~240V/DC230V 50/60Hz
Wiring: 3/5 wires through Optional
Operation Temp: -20~40°C
Function: DALI push DIM | 1-10V Dimmable | Motion Sensor | Emergency
Flicker: Flicker free
Design: LED module & driver Changeable
Material: Sheet metal+PMMA | White coating
Installation: Ceiling mounted | Suspension
Protection: Ball impact resistance
Terminal: 5x1.5mm² | 5x2.5mm² push | 3x1.5mm² | 3x2.5mm² push
