Side-lit Panel

P17

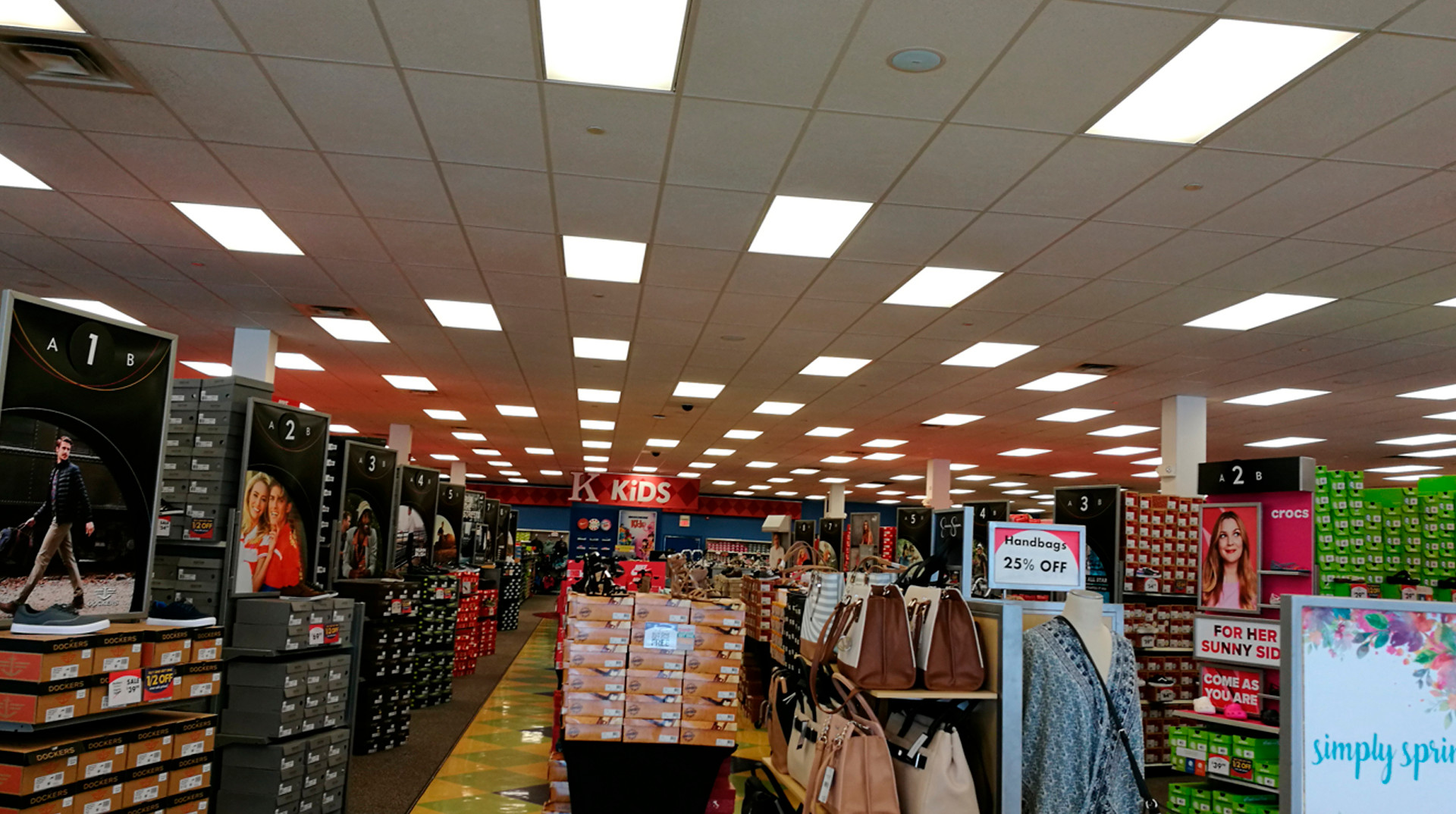

ERVAN Sidelit panel is designed with 11mm slim and robust structure which is an ideal solution to retrofit the traditional grille fixture into more comfortable and eyes friendly lighting result for applications such as classroom, office and supermarket..

Parameter Accessory Video Smart control

Size	Wattage	Lumen	Efficiency	CRI	CCT	SDCM	UGR
1195x595x11mm	60W	7200LM	120lm/w	80	4000K	3	19
620x620x11mm	36W	4320LM	120lm/w	80	4000K	3	19
595x595x11mm	36W	4320LM	120lm/w	80	4000K	3	19
1195x295x11mm	36W	4320LM	120lm/w	80	4000K	3	19
595x295x11mm	22W	2640LM	120lm/w	80	4000K	3	19
295x295x11mm	15W	1800LM	120lm/w	80	4000K	3	19

Name Description

Hook Suspending

Stainless steel material; For suspension using; 4pcs/set

Suspending Cable

Stainless steel material; For suspension using; 2pcs/set

Spring Bracket

Stainless steel material; For built-in ceiling using; 4pcs/set

Surface Mounted

Aluminium material; Used for the ceiling mounted; 1pc/set

Structure Data

Input: AC220~240V 50/60Hz
Wiring: Loop in & loop out available
Function: 1~10V DIM | DALI
Flicker: Flicker free available
Driver: Power adjustable available
Material: Aluminum
Installation: Ceiling mounted; Suspension
Protection: IP20/IK06
CCT: Tunable white 2700-6500k available
